Plasma Series GCS – P CNC Plasma Cutting Solution for metal sheet

Home 9 CNC Solutions 9 CNC Cutting Solutions 9 CNC Plasma Cutting Solution

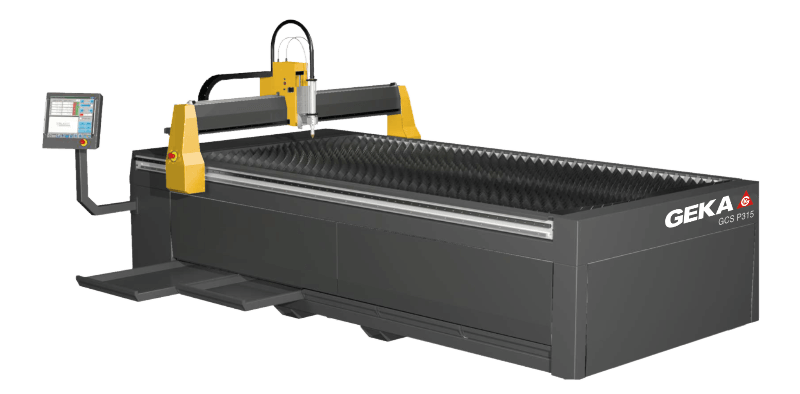

Geka’s Plasma GCS – P series consists of three models of high-production cutting tables for CNC plasma cutting. These CNC-controlled plasma cutting tables are used for metal processing and allow for the possibility of functioning as simple grid tables or with sectorized fumes extraction. The cutting tables are used with a Hypertherm Powermax Plasma cutting machine for CNC plasma cutting. These offer the best performance in their class and come in five different models, capable of handling materials of varying thicknesses. These plasma cutters for sale by Geka are highly portable, very easy to operate and offer fast cutting speeds and a long working life.

Standard features for the Plasma GCS – P series for CNC plasma cutting

• Sectorized fumes extraction • Linear guides with self-lubricated, watertight and play-free ball recirculation skids • Helical racks transmission with servomotors • Automatic self-lubrication (optional) • Chassis made of solid steel • Travel speed: 40 meters / min • Resolution of 0.01 mm • Z head with Torch Height Control in the CNC control, which guarantees automated control of the distance between the torch and the port throughout the cutting process • Anti-collision system • Laser pointer for zeroing verification on the X and Y axis • CNC touch screen control
ModelTableSize
P 20102000 x 1000 mm
P 30153000 x 1500 mm
P 40204000 x 2000 mm
P 60206000 x 2000 mm
Plasma HyperthermThickness
Powermax 4512 mm
Powermax 6516 mm
Powermax 8520 mm
Powermax 10522 mm
Powermax 12525 mm
  • Capacities based on a material resistance of 45 Kg/mm2.
  • GEKA may change technical specifications, equipment and photographs of models, as well as any other information contained herein.
  • Technical characteristics valid except for typographical errors or omissions.
Additional options available for the GCS – P CNC plasma cutting series include: • CAD / CAM with a nesting software • Pieces marking • A 3 kW extraction turbine
