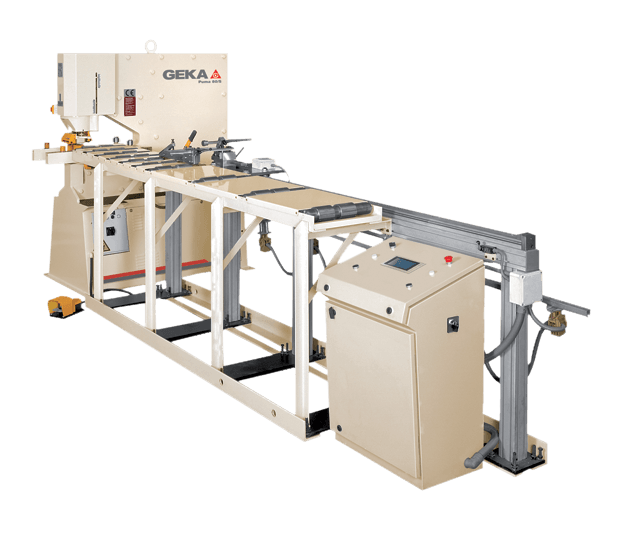

PAX CNC Feeder for Punching Station

Geka’s Pax CNC Feeder is an accessory for the punching stations in the machines belonging to the Hydracrop Series of two-cylinder hydraulic ironworkers and the Puma Series of punching machines. It automates the task of punching lines of holes.

With the CNC feeder mounted on the punching station, metal is pulled along by a clamp which helps push it into the correct position that has been established beforehand. The CNC feeder’s carriage controls the movements, and the metal is then punched by the ironworker.

The Pax CNC Feeder guarantees the automated positioning of material along the X-Axis of the punching station, permitting sequential multiple punching of profiles. This will help increase the productivity and accuracy of your Geka ironworker.

Geka also has other CNC feeders and positioners available for our ironworkers, which you can choose from depending on your ironworker and manufacturing needs: the Semi-Paxy CNC Automatic Positioner, for the punching stations of models in the Hydracrop Series and Puma Series (with a minimum throat depth of 20″), and the ALRS CNC Feeder, for the shearing stations of the machines in the Hydracrop Series.

Features and specifications of the Pax CNC Feeder for Punching Stations

Basic features of the Pax CNC Feeder:

  • Conveyor unit and positioning clamping guides
  • Clamping of material
  • Servo motor positioning
  • Linear roller table top
  • Manually-adjustable set of
FEATURESPAX CNC Feeder
Available strokes118”*
Max. feed speed78.740 ft/min
Max. feed weight551 lb
Repeatability± .002”/ft
* Additional in feed per 39” available.
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

PAX, CNC Feeder for punching video:
