Paxy X Plus CNC Punching and Drilling Solution for long length plates

The Paxy X Plus is one of the CNC lines in Geka’s Paxy Series for processing steel plates. The CNC Paxy X Plus is a great option for automatically punching, marking, and drilling long length steel sheets and metal plates of lengths up to 108″ and widths of up to 30″.
Additional peripherals are also available from Geka, including marking and vertical drilling units, which means you can configure the Paxy X Plus to your specific steel processing needs with the help of our technical services.
Contact with our experts and we will provide all the information and advices that you may need, including technical support, manuals, and brochures of our original Geka products and accessories.

CNC Line for punching, marking and drilling long length plates

The Paxy X Plus is a Geka CNC solution for processing long steel plates up to 708” long and 1 9/16” thickness. Through its automated feeder, the Paxy X Plus offers material feeding by clamping guides for the easy loading and unloading of material.

PAXY X Plus CNC Solutions for plates video:

FEATURES PAXY X PLUS
Max. Length 118″ – 708″
Max. Width 30″
Max. Thickness 1-9/16″
Max. Diameter 1-9/16″
Nº Punches Up to 3
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

Peripherals Available for the Paxy X Plus

  • Triple-punching head
  • Marking unit
  • Vertical drilling unit

Main features of the Paxy X Plus CNC Line

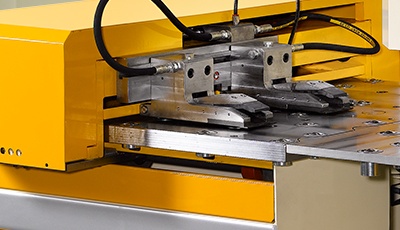

AUTOMATED FEEDER

Material clamping guides.
Set of independent servo drives along each axis.
Fast and easy loading and unloading of material.

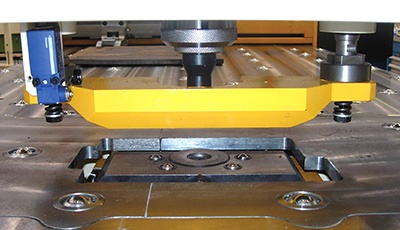

PUNCHING UNIT

Proven quality and performance of the PUMA Model.
Variable punching force (88 to 240 US Tons).
Hydraulic hold-down.

USER-INTERFACE

PC on Windows 10 platform.
Network Connectivity.
USB ports.
Graphic interfaces.
Remote Assistance via internet.
