Alfa Series CNC Solutions for Punching, Marking, Drilling and Shearing Flat Bars
Geka’s Alfa Series consists of four different models of CNC lines for different iron flat bar punching tasks. They are each configurable to your special needs, as there are several optional Geka peripherals available for the models in the Alfa Series including marking and drilling units and an automatic material loader.
Alfa 150, CNC Punching and Shearing line for Flat Bars
CNC Solution for punching and shearing flat bars.
Alfa 500, CNC Line for Punching, Drilling and Shearing Flat Bars
CNC Solution for punching, marking and shearing flat bars.

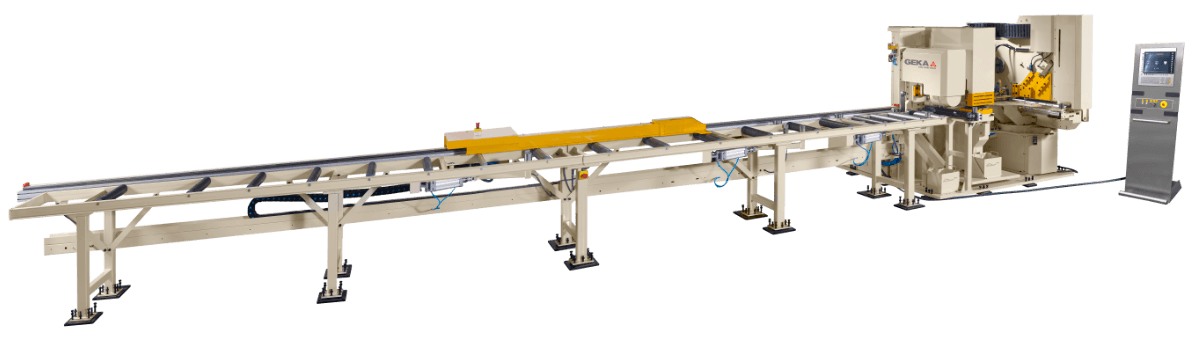

Alfa 500-150 for Punching, Drilling and Shearing Flat Bars and Angles
CNC Solution for punching, marking, drilling and shearing flat bars and angles.

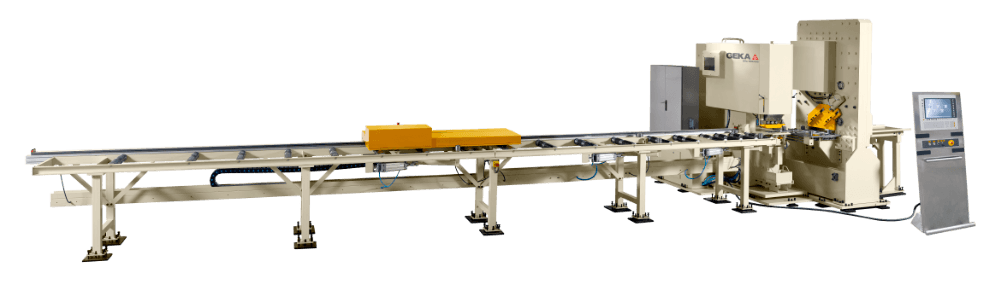

Alfa Plus, CNC Line for Punching, Drilling and Shearing Flat Bars
CNC Solution for punching, marking, drilling and shearing flat bars up to 1 9/16″ in thickness.Geka Services for your Alfa Series CNC Line for Flat Bars
Choose the Geka service you would like to contact with from below.
Sales Consultant
Our knowledgeable sales consultants will be able to provide you with extensive information and advice regarding our Alfa Series of CNC Solutions.
Brochure Request
All of our products have brochures available with product descriptions.
Technical Support
Our Geka qualified engineers are here to provide after-sale assistance.
Manual Request
You can request the manual for any of your Geka machines or tools.We’ve been forging stories and satisfying tens of thousands of customers for over 100 years.
GEKA ALFA Series main features
| ALFA 150 | ALFA 500 | ALFA 500/150 | ALFA 500/165T | ALFA 500/220T | |
|---|---|---|---|---|---|
| Flat Bar Size (Min.) | 1 x 1/8″ | 2 x 3/16″ | 2 x 3/16″ | 4 x 3/8″ | 4 x 3/8″ |
| Flat Bar Size (Max.) | 6 x 3/8″ | 20 x 3/4″ | 20 x 3/4″ | 20 x 1 1/4″ | 20 x 1 1/4″ |
| Horizontal-Wing Punches | 2 | 3 | 3 | Up to 3 | Up to 3 |
| Maximum Diameter | 1 1/4″ | 1 9/16″ | 1 9/16″ | 1 9/16″ | 1 9/16″ |
| Punching Force | 70 Tons | 120 Tons | 120 Tons | 185 Tons | 240 Tons |
| Marking | – | Disc | Disc | Disc | Disc |
| Number of characters | – | 40 | 40 | 40 | 40 |
| Vertical wing punches | – | – | 1 | – | – |
| Maximum Diameter | – | – | 1 1/4″ | – | – |
| Vertical Punching Force | – | – | 65 Tons | – | – |
| Angle Processing (Min. Size) | – | – | – | 1 1/2 x 1/8″ | – |
| Angle Processing (Max. Size) | – | – | 6 x 6 x 5/8″ | – | – |
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
