Alfa 150 CNC Punching Solution

Geka Alfa 150: CNC Solution for Flat Bars punching and shearing flat bars

The ALFA 150 is one of four models in Geka’s Alfa Series of CNC lines for flat bar processing operations, including steel flat bar punching. This CNC solution performs automatic punching and shearing operations on flat bars of sizes from 1/8” to 1/2” in thickness. The Alfa 150 features a servo motor-operated tracking wheel.

Features and Specifications of the Alfa 150 CNC Solution

FEATURESALFA 150
Flat Bar Size (Min.)1 x 1/8″
Flat Bar Size (Max.)6″ x 3/8″ or 4″ x 1/2″
Punches2
Maximum Diameter1-1/4″
Punching & Shearing Force70 US Tons
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.
Additionally, Geka has optional peripherals available for the Alfa 150 that customers may pick and choose depending on their manufacturing needs. Our technical support service will assist you in deciding how to equip and customize your machine. These include:

  • Minimal Waste Unit.
  • Automatic Feeder.
  • Advanced Software with Nesting and DSTV Importing.
ALFA 150 CNC Line for flat bars video:

Main Features of the ALFA 150 CNC Line

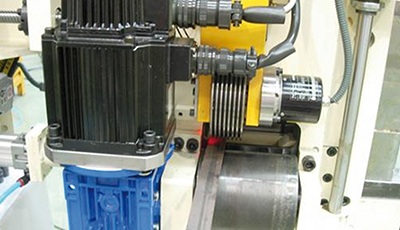

INPUT CONVEYOR UNIT

Servo motor-operated tracking wheel.
Dedicated encoder unit.
Positioning speeds up to 1,417″/min.

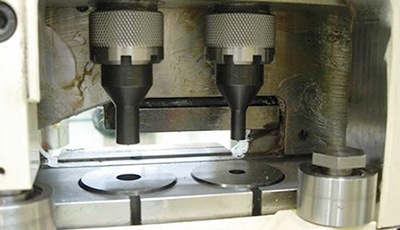

PUNCHING UNIT

Can accommodate two different punches
1-1/4″ maximum diameter.
CNC-controlled left to right movements.
Hydraulic hold-down.

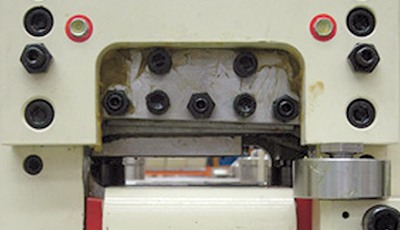

SHEARING UNIT

Single-cut shearing.
Anti-torque system which allows the machine to cut material without deformation.
The solution is ideal for shearing steel and soft metals (i.e., copper).

USER-INTERFACE

PC on Windows 10 platform.
Network Connectivity.
USB ports.
Graphic interfaces.
Remote Assistance via internet.
