Alfa Plus Punching Solution
Alfa Plus: Automatic CNC Line for Punching, Drilling, Marking and Shearing Flat Bars
The two Alfa Plus models are CNC-controlled automated lines for steel flat bar and metal flat bar punching, shearing, marking, and drilling. These CNC solutions can perform those operations on flat bars up to 40″ long.
The Alfa Plus CNC automated lines also feature a triple head punching unit for flat bars with diameters of up to 1 9/16″. Additional tools and accessories are also available from Geka, including an optional marking and drilling units, which means you can configure the CNC solutions that best meets your manufacturing needs with the help of our technical support service.
Features and specifications of the Alfa Plus CNC Lines
|FEATURES||ALFA 500/165T||ALFA 500/220T|
|Flat Bar Size (Min.)||4 x 3/8″||4 x 3/8″|
|Flat Bar Size (Max.)||20 x 1 1/4″||20 x 1 1/4″|
|Optional Punches||Up to 3||Up to 3|
|Maximum Diameter||1 9/16″||1 9/16″|
|Punching Force||185 Tons||240 Tons|
|Number of characters||40||40|
- Capacities based on a material resistance of 65,000 tensile.
- The manufacturer reserves the right to make modifications without prior notice.
- Automatic Material Loader.
- Marking Unit.
- Advanced Line Pro Software with Nesting and Importing.
- Drilling Unit.
Main Features of the Alfa Plus CNC Lines
INPUT CONVEYOR UNIT
Rack & Pinion servo drive carriage.
Flat bars are pushed and clamped by the carriage.

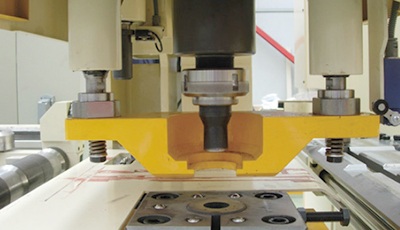

Can punch flat bars with diameters of up to 1 9/16″.
Servo motor and spindle-driven horizontal positioning along the Y-Axis.

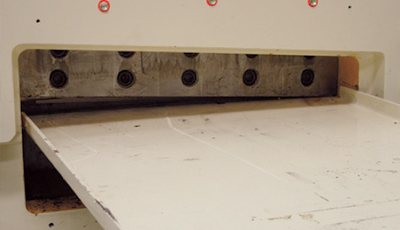

Cuts flat bars.
Hydraulic stops and clamping guides.
PC on Windows 10 platform.
Remote Assistance via internet.
