Gamma Roller 160 – 3P / ALPS, CNC Solution for punching, marking and cutting angles, flat bars and U profiles

The Gamma Roller 160-3P / ALPS is a CNC line in Geka’s Gamma Roller Series for industrial drilling, punching, marking, and shearing angles, flat bars, and U channels. Its punching station has a punching force of 82 US tons and 6 punches in total (3 per wing), while its shear station tonnage is of 286 US tons. The machine adheres to very high standards of precision.

Additionally, Geka also offers a wide variety of optional peripherals for the Gamma Roller 160 – 39 / ALPS. This allows customers to configure the CNC line to their particular manufacturing and industrial drilling needs.

geka-usa-cnc-line-angle-processing-system-gamma-roller-ALPS-150

Peripherals Available for the Gamma Roller 160 – 3P / ALPS:

  • Automatic Feeder.
  • Minimal Waste System.
  • Material Unloading System.
  • Advanced Software with Nesting and Importing DSTV.

Features and specifications for the Gamma Roller 160 – 3P / ALPS

Features GR 160 – 3P
Minimum L 1-1/2″ x 1-1/2″ x 3/16″
Maximum L 6″ x 6″ x 5/8″
Minimum Flat Bar 3-1/4″ x 5/16″
Maximum Flat Bar 6″ x 5/8″
Minimum U 3″ x 4.1lb
Maximum U 5″ x 6.7lb
Marking Cassette
Characters 3/8 x 1/4″ size typeface
Nº Punches 6 (3/wing)
Maximum Diameter 1-1/4″
Punching Force 82 US Tons
Shear station tonnage 286 US Tons
Feeder Speed Programmable Up to 1,417 Ft/min
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

Video of Gamma Roller 160 3P CNC Solution:

Main Features of the Gamma Roller 160 – 3P / ALPS CNC LINE

geka-usa-cnc-line-angle-gamma-roller-80-power-unit
PULL TYPE FEEDING.

Servomotor-driven tracking unit with independent encoder units at both ends of the machine.

geka-usa-cnc-line-angle-gamma-roller-160-3P-punching-unit

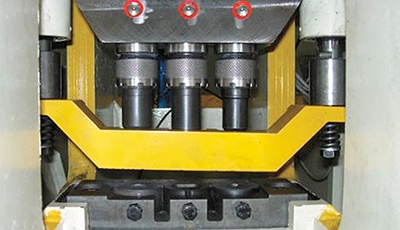

PUNCHING UNIT.

Three different punches per wing.
For diameters of up to 1-1/4″.
Hydraulic hold down.
CNC-controlled gauges.

geka-usa-cnc-line-angle-gamma-roller-150-2P-shearing-unit
SHEARING UNIT.

Performs clean cuts without wasting material.
Blades are quickly and easily accessible.

geka-usa-cnc-line-angle-gamma-roller-160-3P-marking-unit

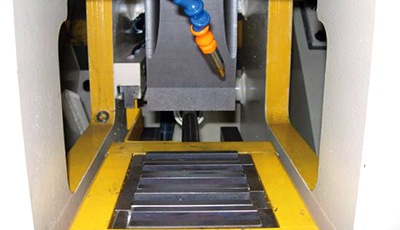

MARKING UNIT.

Five references.
Ten characters per reference 3/8″ x 1/4″.
PC-controlled selection by reference.

USER-INTERFACE.

PC on Windows 10 platform.
Network Connectivity.
USB ports.
Graphic interfaces.
Remote Assistance via internet.
