The Gamma Traction 250 is one of the CNC automation lines in Geka’s Gamma Series. It features a traction system with a feeder trolley and performs punching, drilling, marking, and shearing of angles.

The Gamma Traction 250 can punch materials with thicknesses of up to 5/8″ and its four drilling tools per wing can drill materials up to 1 9/16″ thick. The cutting station in this CNC solution can shear profiles of dimensions as large as 10″ x 10″ x 1″. A cassette marking station is also included with the Gamma Traction 250.

Geka also has optional peripherals available for the Gamma Traction 250, including an output conveyor unit for the classification of material. With the assistance of our technical support service, you may configure the CNC solution to your particular requirements.

Features and specifications of the Gamma Traction 250 CNC Line

FEATURES GAMMA TRACTION 250
Minimum angle 2″ x 2″ x 3/16″
Maximum angle 10″ x 10″ x 1″
Number of punches 6 (3/leg)
Maximum punch diameter 1-1/4″ in 5/8″
Marking Station Cassette
Punching power 82 US Tons
Shearing power 560 US Tons
Drilling tools 8 (4 per wing) ISO 40
Drill Power 12 H.P. – 9 kW
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

Video of Gamma Traction 250 CNC Solution:

Peripherals available for the Gamma Traction 250

  • Automatic side loader.
  • Output conveyor unit.
  • Advanced Software with Nesting and DSTV Import.

Main features of the Gamma Traction 250

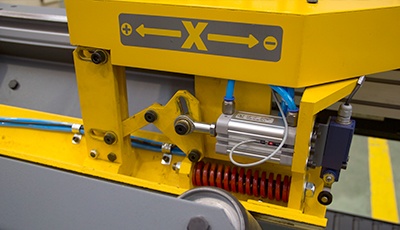

geka-usa-cnc-line-angle-gamma-traction-250-loading-system
AUTOMATED FEEDER

Material is clamped and pushed with a gripper.
Rack and pinion system driven by a servo-motor.

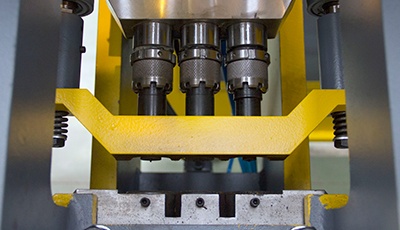

geka-usa-cnc-line-angle-gamma-traction-250-punching-unit
PUNCHING UNIT

6 punches (3 per leg).
CNC-adjustable gauge.
Hydraulic hold-down.

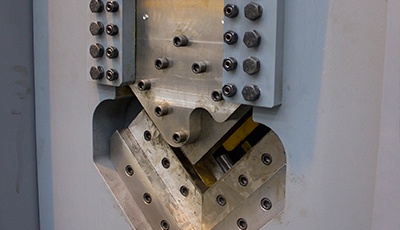

geka-usa-cnc-line-angle-gamma-traction-250-shearing-unit
SHEARING UNIT

Performs clean cuts without wasting any material.
Blades may be easily and quickly changed.

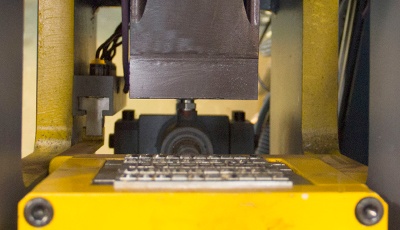

geka-usa-cnc-line-angle-gamma-traction-250-marking-unit
MARKING UNIT

CNC-controlled positioning and marking selection.
Adjustable pressure (supports future galvanizing and painting).
Extremely fast and reliable.

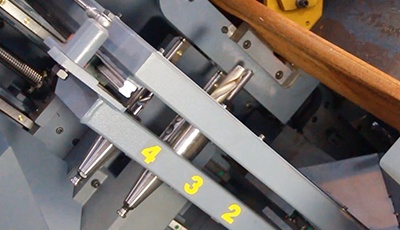

geka-usa-cnc-line-angle-gamma-traction-250-drilling-unit
DOUBLE DRILLING UNIT

8 tool (4 wing).
Maximum diameter 1 9/16”.
ISO 40 Tool Holder.

USER-INTERFACE

PC on Windows 10 platform.
Network Connectivity.
USB ports.
Graphic interfaces.
Remote Assistance via internet.
