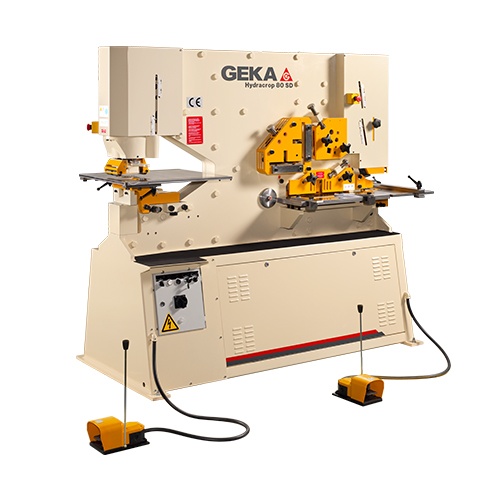

Hydracrop 80/150 Universal Ironworker

The Geka Hydracrop 80/150 is one of the models in Geka’s Hydracrop Series, of two-cylinder hydraulic ironworkers. The two cylinders featured in these machines allow for higher production speeds, a higher capacity for materials, and for the possibility of being used by two operators at once. The five workstations featured in these machines may also be equipped with additional optional accessories to suit a range of different tasks.
The five workstations included in the Geka Hydracrop 80/150 Ironworker Machine

  • Punching station: since it is fitted with an independent cylinder, this station offers great flexibility by being able to be mounted with many different optional Geka tools and die sets.
  • Station for shearing angles at 90°: thanks to a Geka-designed patented system of a floating upper blade traveling along a rectilinear line, this station offers distortion-free single-cut shearing.
  • Notching station: the notching station in the Hydracrop machines is incredibly versatile. It can be mounted with many different Geka tools and equipment to equip it for a range of tasks including triangular notching at 90°, pipe notching, and radiusing the ends of flat bars, among others.
  • Station for shearing flat bars and plates: the superior stability of the monoblock blade-holder included in the station allows it to provide an optimum shearing results.
  • Cutting station for round and square bars: the station includes standard blades for cutting square and round bars. However, it may also be fitted with optional blades that can cut U profiles, I, T and other shapes.

Additionally, the Geka 80 ironworker machine, as all the models in the Hydracrop Series, has an electric cabinet with a manual selector / electrical limit switch. The electric cabinet is easily removable to access the hydraulic unit.

Specifications for the Geka Hydracrop 80/150

FEATURESGEKA HYDRACROP 80/150
Punching Power88 US Tons
PunchingØ 1 1/2″x3/8″
Ø 3/4″x3/4″
Shearing Power155 US Tons
Shears of Flat Bars and Plates18″x5/8″
12″x3/4″
Shearing of Angles
(without deformation)
5″ x 5″ x 1/2″
Shearing of Solid Round and Square Bars
(Optional Blades)
Ø 1-3/4″ and 1-3/4″
Rectangular Nothing3-1/2″ x 2″ x 15/32″
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

Hydracrop 80, 2 Cylinders Ironworker with five Workstation video:

Main features of the Geka Hydracrop 80/150

A standard punching station with a gauge table.
Shears for flat bars, including marking for miter cuts.
A sections station with cutting blades for round and square bars.
A rectangular notching station with a gauge bar.
An angle cutting station.

Hydracrop main features:

Max Punching ØFlat Bars ShearingBars ShearingAngle cut 45ºAngle cut 90ºNotching
Hydracrop 551-1/2″ x 3/8″12″ x 5/8″
8″ x ¾”
1 5/82 3/4“x2 3/4“x1/44 3/4“x4 3/4“x 3/83/8” thickness
Hydracrop 801 1/16” x 1/2”18″ x 5/8″
12″ x ¾”
3/42 3/4“x2 3/4“x1/45 1/8“x 5 1/8” x 1/21/2″ thickness
Hydracrop 1101 1/16” x 1/2”24″ x 5/8″
16″ x ¾”
2″2 3/4“x2 3/4“x1/46″x 6″ x 1/21/2″ thickness
Hydracrop 1651 1/2” x 1/2”30″ x ¾”
16″ x 11/8
3/82 3/4“x2 3/4“x1/48″x 8″ x 3/45/8″ thickness
Hydracrop 22011/2”x11/2”30″ x ¾”
16″ x 11/8
3/82 3/4“x2 3/4“x1/48″x 8″ x 3/45/8″ thickness
  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.

CNC Feeders and Positioners for GEKA Ironworkers and Punching Machines

With our Geka CNC positioners and feeders your Geka ironworker will be able to automatically position plates and profiles, increasing the productivity and time-efficiency of your manufacturing processes.
