Puma Series: Hydraulic Punching Machines

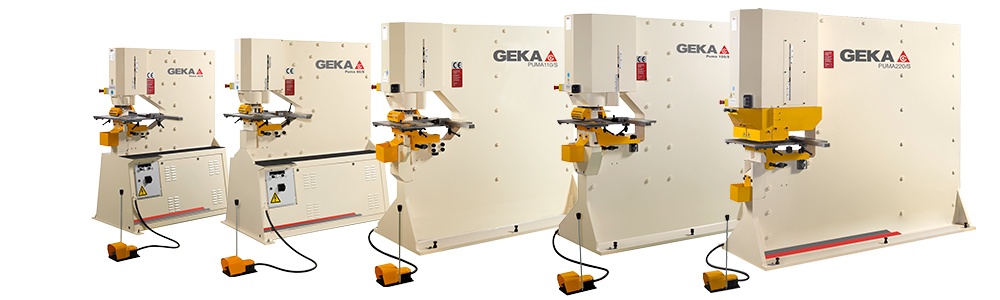

The Geka Puma Series of hydraulic punching machines has been designed by our experienced engineers for over 100 years.

Thanks to our know-how and our commitment to quality, the Geka Puma Series of punching machines are resistant and reliable machines for any punching needs. Five different models are available ranging in size and punching power and each of them are available in two versions (S and D) with different throat depths.

STANDARD FEATURES IN THE PUMA SERIES OF PUNCH PRESS HYDRAULIC MACHINES

  • Technically dimensioned frame.
  • Gibbed and guided hydraulic cylinder.
  • Jog Mode/Inching for gradual centering of punch.
  • Quick-change punch holders.
  • Safety protection.
  • Ample space for mounting special equipment.
  • Optimum operation speed.

A large number of optional, standard, and special accessories are available from Geka to enable the machines to perform a wide range of jobs.

The Puma Series features models ranging in punching power from 60 to 240 US Tons with various throat depths.

Models in the Puma Series

Puma 55 : this punching machine is the most portable model in the Puma Series.
The Puma 55 offers a punching power of 60 US tons and a throat depth of either 19 5/8″ and 29 1/2″.

Puma 80 : this punch press includes all the standard features of the Puma Series, with a punching power of 88 US tons and throat depths of 20″ (S version) or 29 1/2″ (SD version).

Puma 110 : the Puma 110 has a punching power of 120 US tons and a maximum capacity for diameters of 1 ½” x ¾”.

Puma 165 : the second most powerful model in the Puma Series, it has a punching power of 185 US tons.

Puma 220 : at 240 US tons, the punching power in this hydraulic machine is the highest in the Puma Series. The S and SD versions have throat depths of 20″ and 31 1/2″, respectively.

CNC Feeders and Positioners for GEKA Ironworkers and Punching Machines

By equipping your Geka ironworker with our CNC positioners and feeders you will be able to automatize the positioning of plates and profiles in their shearing and punching stations. This can increase the productivity and time-efficiency of your ironworking process.

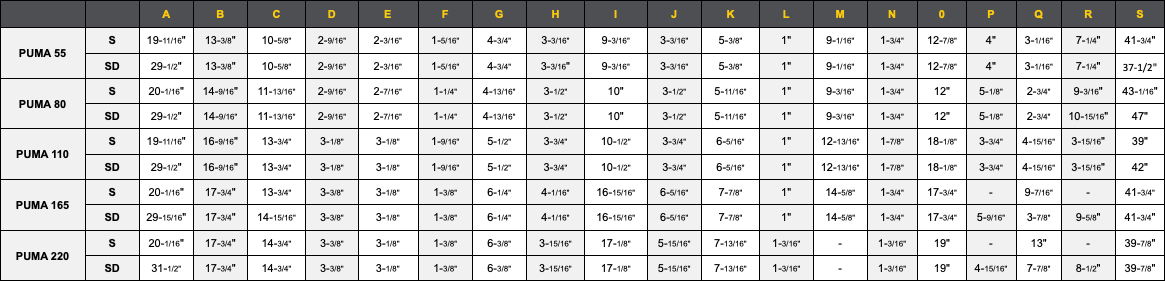

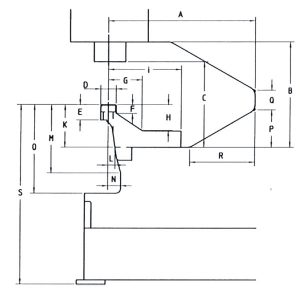

Puma Series Specifications

HYDRAULIC PUNCHING MACHINES:  PUMA-55PUMA-80PUMA-110PUMA-165PUMA-220
PUNCHING
Punching power US Tons6088120185220
Maximum capacity Ø

1-1/2″ x 3/8″

1-1/2″ x 9/16″

1-1/2″ x 3/4″

1-1/2″ x 1 1/4″

1-1/2″ x 1 1/2″

Throat DepthsSin

19-5/8″

20″

19-5/8″

20″20″
 SDin

29-1/2″

29-1/2″

29-1/2″

29-7/8″

31-1/2″

PUNCHING OF SECTIONS WITH GOOSENECK DIE HOLDER
I on the leg in

4″ to 12″

4″ to 12″

4″ to 17-3/4″

4″ to 17-3/4″

4″ to 17-3/4″

I on the web in

4″ to 19-5/8″

4″ to 19-5/8″

4″ to 19-5/8″

4″ to 19-5/8″

4″ to 19-5/8″

U on the leg in

4″ to 12″

4″ to 12″

4-3/4″ to 15-3/4″

4-3/4″ to 15-3/4″

4-3/4″ to 15-3/4″

U on the web in

4-3/4″ to 10-1/4″

4-3/4″ to 14-7/8″

4-3/4″ to 15-3/4″

4-3/4″ to 15-3/4″

4-3/4″ to 15-3/4″

GENERAL FEATURES
Motor power H.P.7.512122727
Strokes per minute based on 3/4″ Travel of Punching Cylinder  3740282825
Maximum stroke in

2-23/64″

2-3/4″

3-5/32″

3-15/16″3-15/16″
Working heightS/SDin

41-3/4″ / 37-1/2″

43″/ 47″39″/ 42″

41-3/4″ / 41-3/4″

39-7/8″ / 39-7/8″

Net weightS/SDLbs

2,535 / 4,155

2,415 / 4,6656,945 / 8,7559,460 / 9,97511,465 / 12,125
Gross weightS/SDLbs2,910 / 4,6304,245 / 5,1807,495 / 9,48010,365 / 11,02512,570 / 13,230
VolumeS/SDFt3

128-1/8″ / 147-1/4″

160″ / 207-1/4″

196″ / 240 7/8

258-1/8″ / 316

340″ / 353-1/8″

Dimensions with Seaworthy PackagingSin

61″ x 47″ x 77″

67″ x 51″ x 81″

82″ x 51″ x 81″

80″ x 63″ x 128″

100″ x 63″ x 93″

 SDin

73″ x 47″x 71″

83″ x 51″ x 85″

90″ x 51″ x 91″

80″ x 63″ x 128″

105″ x 63″ x 93″

OPTIONAL EQUIPMENT
Oversize Diameters Punching Ø

4″ x 5/32″

4″ x 1/4″

4″ x 3/8″

4″ x 1/2″

4″ x 5/8″

  • Capacities based on a material resistance of 65,000 tensile.
  • The manufacturer reserves the right to make modifications without prior notice.
