Standard press brake tool
The standard press brake is a press equipment for Geka’s ironworking machines. It offers the capability of folding a flat bar to obtain a sheet metal part with straight edges and generatrixes.
The standard press brake is placed on the same hydraulic cylinder used by the punching station. This means that it needs to be manually dismantled and that the punching area needs to be cleared before working with the standard press brake.
If you need a permanent bending station, the Bendicrop Series ironworking machine features a built-in bending station, giving you a permanent and reliable bending station right on your Geka ironworker.
If you have any questions about our standard press brake or if you need sales or technical advice, please contact Geka. Our experts will help you with this equipment. We have a wide range of services that can help you with all of our products, from sales consultants to technical support. We can also send you a brochure or a manual about your Bendicrop series ironworker machine.
Standard press brake specifications by machine
| MACHINE | Bending power kN | Maximum capacity |
|---|---|---|
| Microcrop 36 | 40 Ton | 3″ x 1/2″ |
| Minicrop | 45 Ton | 3″ x 35/64″ |
| Multicrop | 45 Ton | 3″ x 35/64″ |
| Bendicrop | 50 Ton | 4×3/8″ |
| Hydracrop 55S | 55 Ton | 19 11/16×1/8″ |
| Hydracrop 80S | 80 Ton | 23 5/8×1/8″ |
| Hydracrop 110S | 80 Ton | 27 9/16″x1/8″ |
| Hydracrop 165SD | 165 Ton | 27 9/16″x1/8″ |
| Hydracrop 220 | 220 Ton | 27 9/16″x1/8″ |

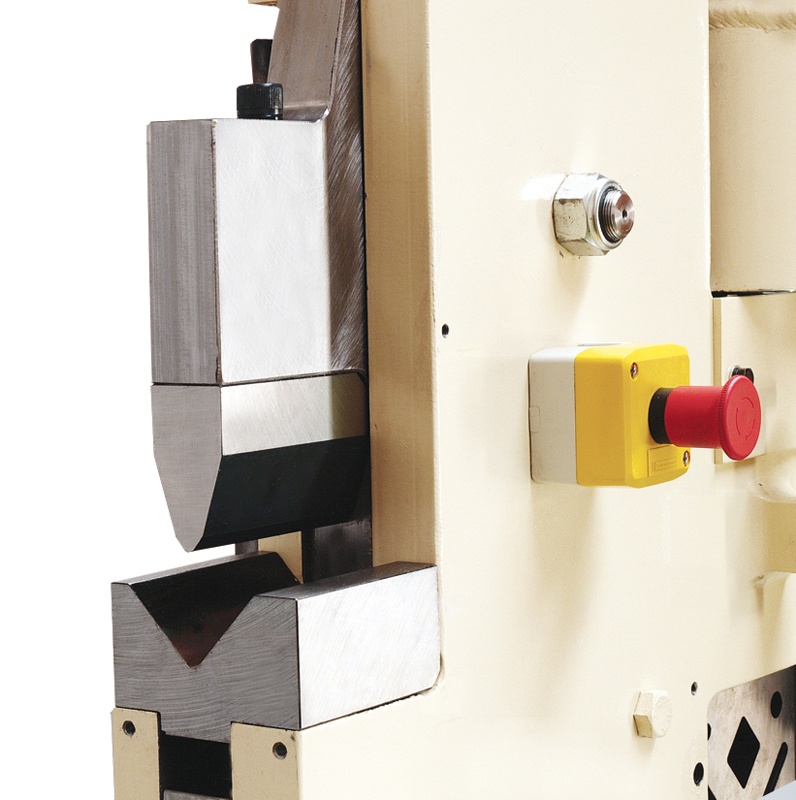

Bendicrop Standard Press Brake.

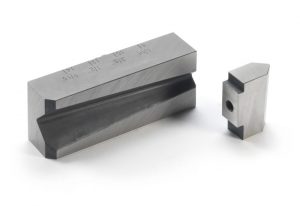

Minicrop Standard Press Brake.

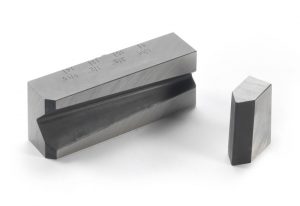

Multicrop Standard Press Brake.
