Tools for the cutting of angles (90º
These machine cutting tools allow Geka ironworking machines to cut angles of 90° in L profiles. Additionally, on some models, this equipment can also cut angles at 45°.
These machine cutting tools include a guided hold-down device that guides the angle into the shearing station of your machine in several different positions. The hydraulic hold-down device protects the shearing blades, improves the machine’s safety and holds the angle in a stable position, which improves shearing accuracy and reliability.
Geka original tools for cutting angles at 90° also feature and electric length stop as an optional accessory. This accessory optimizes the time that it takes to perform repetitive angle cutting operations.
If you have any questions about this or any other cutting tool or if you need technical support, please contact Geka and our team of experts will be glad to help you.
This machine cutting tool is available for all the models in Geka’s one-cylinder hydraulic ironworkers and the Hydracrop Series of two-cylinder hydraulic ironworkers.
The list below compares the maximum shearing capacity for every Geka machine’s shearing station’s tool for cutting angles at 90°. The maximum angle cutting size is listed for every model. Capacities are listed for shearing without any deformation of the material, however, it is also possible to shear larger profiles with a slight amount of deformation.
Tools for the cutting of angles (90º) specifications by machine

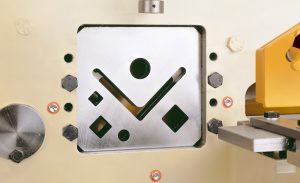

Minicrop Angle Cutting 90º

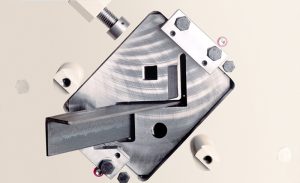

Multicrop Angle Cutting 90º

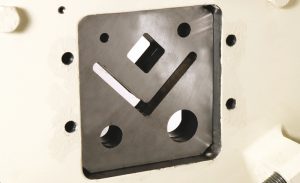

Bendicrop Angle Cutting 90º
Hydracrop Angle Cutting 90º
| MACHINE | without deformation | with slight deformation |
|---|---|---|
| Microcrop | 3″x3″x5/16″ | – |
| Minicrop | 3″x3″x5/16″ | 4″ x 4″ x 3/8″ |
| Multicrop | 3″x3″x5/16″ | – |
| Bendicrop | 3″x3″x5/16″ | – |
| Hydracrop 55 | 4″3/4″x4″3/4″x 3/8″ | 5″x 5″ x 1/2″ |
| Hydracrop 80 | 5″x 5″ x 1/2″ | 6″x 6″ x 1/2″ |
| Hydracrop 110 | 6″x 6″ x 1/2″ | 6 1/4 x 6 1/4 x 5/8″ |
| Hydracrop 165 | 8 x 8 x 3/4 | 8″x 8″x 1″ |
| Hydracrop 220 | 8 x 8 x 3/4 | 8″x 8″x 1″ |
