Flat Bars Cutting Equipment
Almost any Geka ironworker features a special flat bars equipment, which consists of a station for shearing and cutting flat bars. The flat bars cutting equipment is very simple to operate and performs precise cuts without wasting any of the material. Most of the Geka ironworker models are fitted with an anti-twist system that drastically reduces the deformation of material when shearing flat bars.
The flat bars cutting equipment includes a guided table for guiding the flat bar into the shearing station in several angle positions. The shearing stations may also include a hold-down device that protects the blade, improves safety, and holds the flat bar to improve accuracy and stability during shearing operation.
The hydraulic hold-down device is also available as an optional accessory on some Geka hydraulic ironworker machines. This accessory, which can perform double hole punching, is only available in the Hydracrop Series and must be mounted by Geka in the original machine at the factory.
If you have any questions about the flat bars cutting equipment or if you need any advice, ask our experts to help you with this equipment. Please contact Geka.
The table below compares the maximum shearing capacity of the flat bars cutting equipment on each Geka machine. The maximum cutting size for flat bars is given for each Geka machine.
Flat Bars Cutting Equipment Specifications
Flat Bars Cutting Equipment by machine

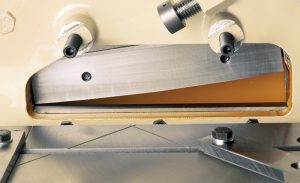

Minicrop Flat Bars Cutting equipment.

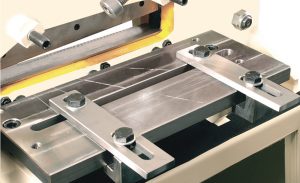

Bendicrop Flat Bars Cutting equipment.

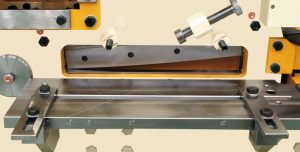

Hydracrop Flat Bars Cutting equipment.
| MACHINE | Capacity |
|---|---|
| Microcrop | 13¾” x ¼” |
| Minicrop | 10″ x 3/8″ |
| Multicrop | 10″ x 3/8″ 8″ x ½” |
| Bendicrop 50 | 14″ x 3/8″ 14″ x 1/2″ |
| Bendicrop 85 SD | 18″ x 5/8″ 18″ x 3/4″ |
| Hydracrop 55 | 12″ x 5/8″ 8″ x ¾” |
| Hydracrop 80 | 18″ x 5/8″ 12″ x ¾” |
| Hydracrop 110 | 24″ x 5/8″ 16″ x 3/4″ |
| Hydracrop 165 | 30″ x ¾” 20″ x 1″ |
| Hydracrop 220 | 30″ x ¾” 20″ x 1″ |
