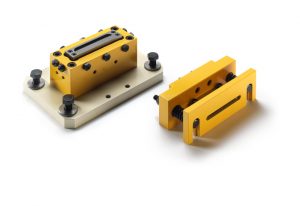

Louvre notching tools

The louvre notching tools are punching and notching tools for the punching stations in Geka’s two-cylinder hydraulic ironworkers in the Hydracrop Series or the punching machines in the Puma Series. With our louvre notching tools you can convert flat bars into louvres.

To convert a flat bar into a louvre you need to perform two operations: cutting and stuffing. With Geka’s louvre notching tool, both operations, cutting and stuffing are made simultaneously with one single punching movement. You can cut the flat bar before or after the operation in the flat bars shearing station of your machine.

Our standard louvre notching equipment can obtain louvres with dimensions of 4″×35″/64″×9/32″ (width, depth and height).

Our wide range of punches and dies also allows you to punch several standard shapes: round, square, rectangular, oblong or to even make your own shape and size with our custom punches and dies tailor-made solutions. If you wish to acquire custom punches, please contact our technical service. All of them can be adjusted to the standard machine easily and quickly.
If you have any question about this notching tool or if you need technical or sales advice of any type, please contact our Geka experts to help you with this equipment.

These are the machines with which the louvre notching equipment is compatible:

Puma Series

This series includes 5 punching machines, Puma 55, 80, 110, 165, 220. These machines have a punching power of 60 to 240 US tons, depending on what machine is being used.
They all include a Gooseneck holder for punching machines.
All the punch holders can be changed quickly and include a safety protection.
Large number of optional equipment, like the louvre notching tool.

Hydracrop Series

This series includes 5 machines: Hydracrop 55, 80, 110, 165, 220.
They feature the ability of shearing flat bars and standard bars.
They can cut angles of 45 and 90 degrees.
They can perform notching operations using the louvre notching equipment or other tools.
