Triangular notching equipment tools
The triangular notching equipment is a notching tool for the notching stations of the Geka ironworker machines in the Bendicrop Series of one-cylinder hydraulic ironworkers and the machines in the Hydracrop Series of two-cylinder hydraulic ironworkers, excepting the Hydracrop 220/300.
With this triangular notching tool, you can obtain a triangular cut on the outer perimeter of flat bars or sheet metal. The notching is formed by an upper knife and two lower knives fixed to a lower die base. The triangular notching equipment performs open notching operations, which means that one side of the triangle is at the border of the profile, the same profile border that you place on the inner part of the notching tool will be the one to be open on the outside. This accessory makes triangular notches at 90º.
Our wide range of notching tools will also allow you to notch several standard (square, circular…) and special shapes and it even includes the possibility to make your own shape and size with our custom punches and dies technical service. You may send Geka a sketch, or the specifications, of the tools you would like manufactured and we will do our best to provide them.
All of our notching tools can be mounted to the standard machine in an easy and quick way.
If you have any question about this notching tool or you need additional information, please contact Geka, our experts will help you with this equipment.
Triangular Notching Equipment by machine
|Machine||L x L x e|
|Bendicrop 50||4″ x 4″ x 3/8″|
|Bendicrop 85||5″x 5″ x 15/32″|
|Hydracrop 55||4″ x 4″ x 3/8″|
|Hydracrop 80||5″x 5″ x 15/32″|
|Hydracrop 110||5 1/8×5 1/8×1/2″|
|Hydracrop 165||6 7/64×6 7/64×5/8″|

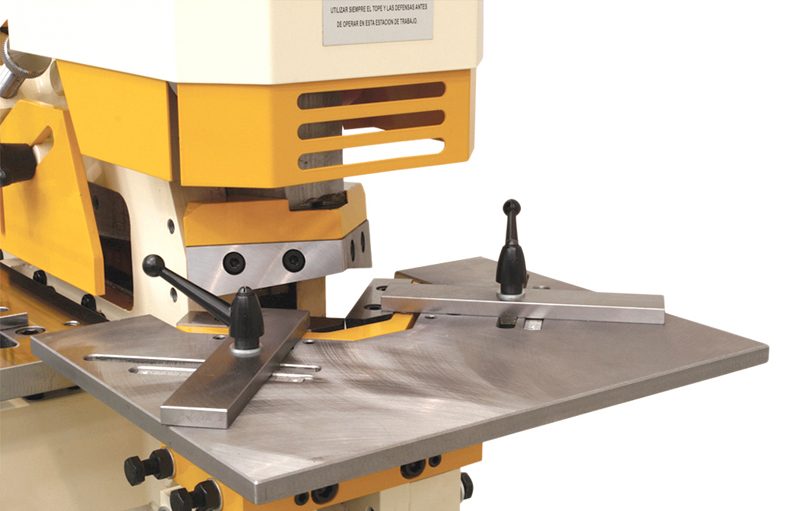

Hydracrop Triangular Notching equipment

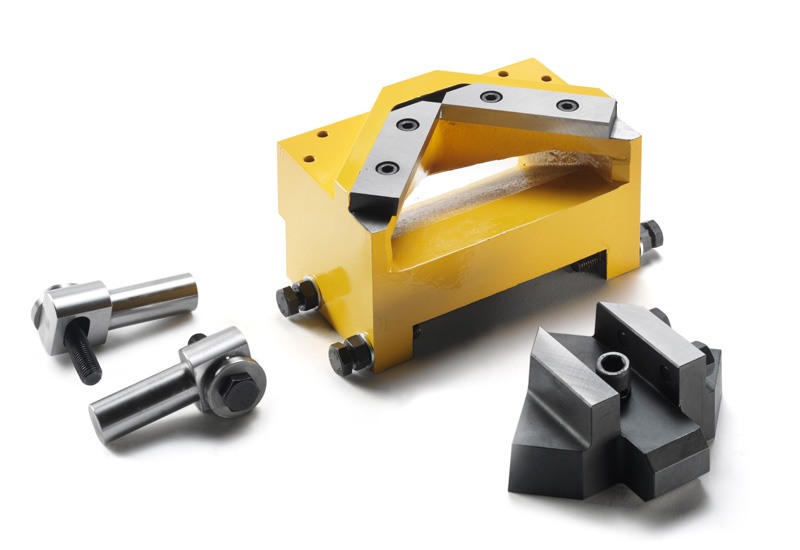

Hydracrop 80 Triangular Notching equipment

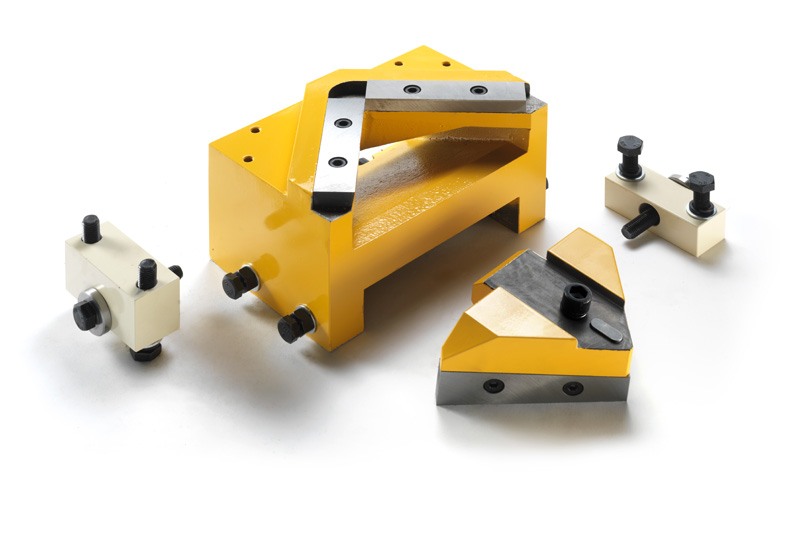

Hydracrop 110 Triangular Notching equipment

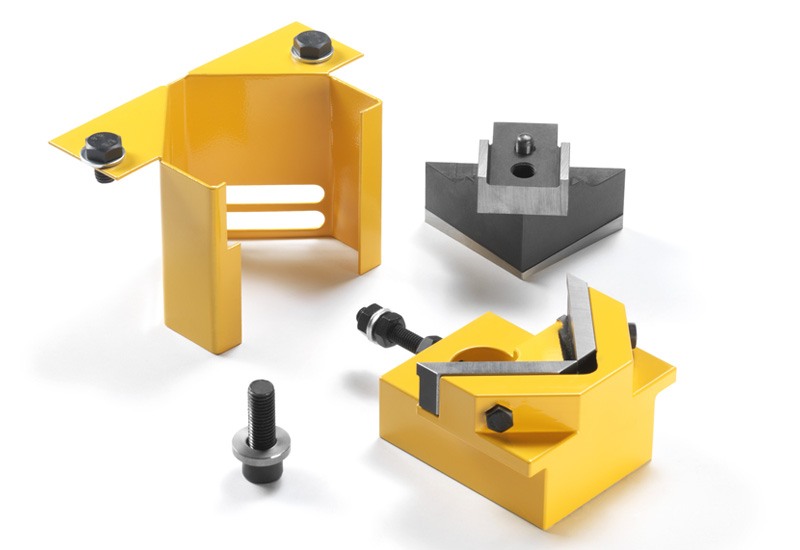

Microcrop Notching equipment

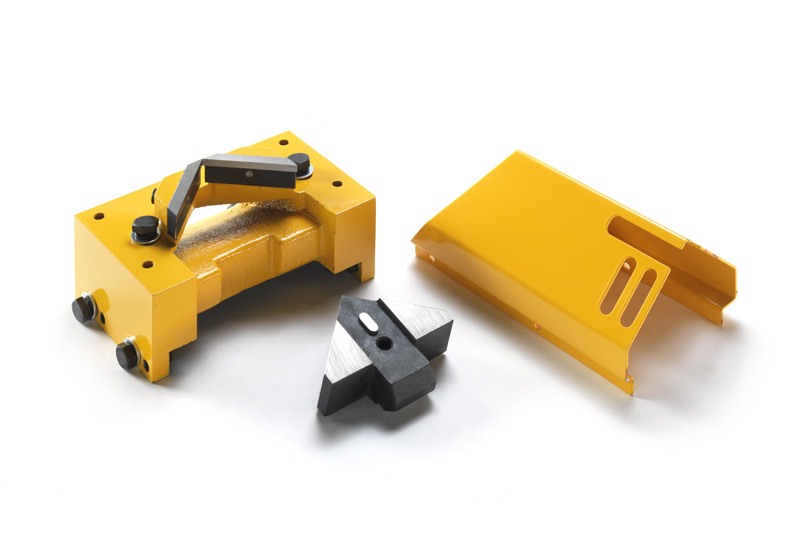

Minicrop Multicrop Triangular Notching equipment
