Multi-stop table tools

The multi-stop punching table is a manual punching machine unit which can be mounted on any of the machines in the Puma series of punching machines or on the Hydracrop Series of two-cylinder hydraulic ironworker machines with a minimum throat depth of 20″.

The multi-stop punching table is useful for manual punching and to improve repetitive punching operations. The multi-stop table tools will help manufacturers reduce the time that it takes to complete this type of repetitive punching tasks.

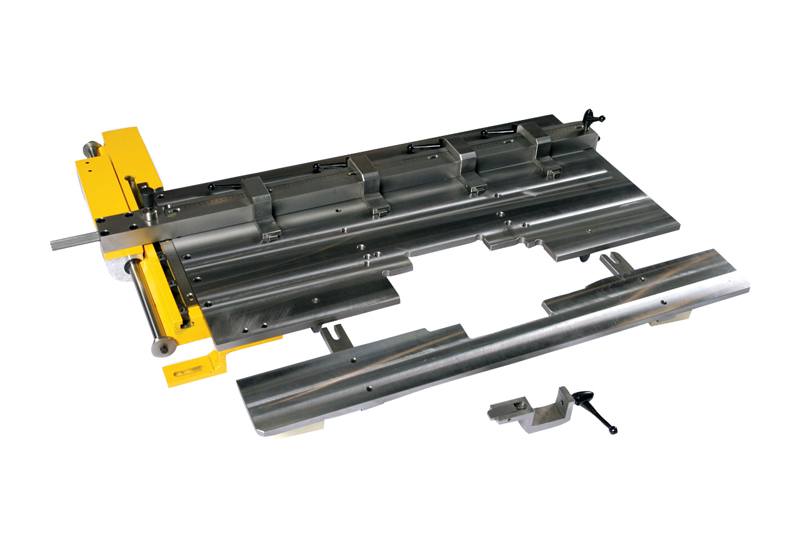

Multi-stop punching table has five retractable key stops mounted on a cross bar which slides off a guided arm.

The front part of the multi-stop table tool can be removed for punching angles and channels.

The stops in this ironworker tool can be moved approx. 20″ from the middle of the die to the left and approx. 20″ to the right. The depth capacity is of approx. 132″. Adjustments must be made manually on the inches decimal scale, on the two axes.

If you have any questions about Geka’s multi-stop punching table or if you need professional advice, please contact Geka. Our experts are available to help you with this equipment.

CAUTION: Never punch a diameter smaller than the material thickness. It is also very important to apply the correct gap between punch and die, the recommended die clearance depends on the thickness of the material.

Similar tool: Semi-Paxy CNC Positioner

If you are looking for a tool that is similar to the punching table but with automated positioning you may be interested in Geka’s Semi-Paxy CNC automatic positioner.

This unit may be included on new machines upon purchase. It is available for the Puma Series of punching machines and the Hydracrop Series of hydraulic ironworkers with throat depths of at least 19 5/8”.

geka-usa-cnc-positioner-semipaxy-table-lenght
